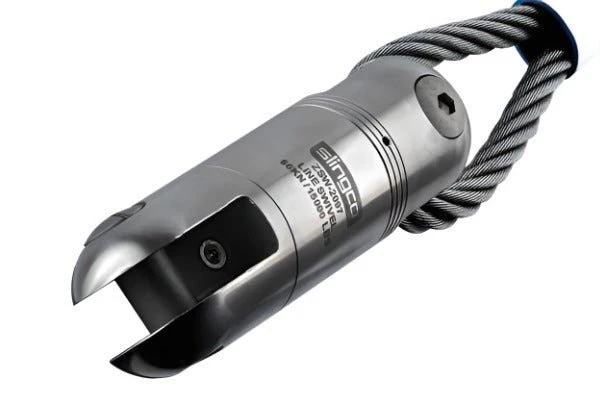

Slingco Cable Line Pulling Swivel

Slingco Line Pulling Swivels are designed for use in stringing high tension wires for electrical transmission and distribution. Swivels are important in pulling when the lines develop torsion during installation. Swivels will release torque and prevent it from reaching dangerous levels, which can cause damage to the cable. All swivels are stringently quality tested and inspected to ensure optimum performance and reliability.

Features and benefits

• Releases torsion
• Prevents damage to cable or grip
• Suitable for underground or overhead applications
• Straight line pulling only
• 7000lbs Safe Working Load

Slingco Part No.	Safe Working Load - 3:1 FOS (lb)	Safe Working Load - 5:1 FOS (lb)	A Length (in)	Ø B (in)	C (in)	Ø D Pin (in)	E Recess (in)	Weight (lb)

ZSW2094

7,000

4,200

5.22

1.38

0.55

0.5

0.54

1.44



SKU: ZSW2094
